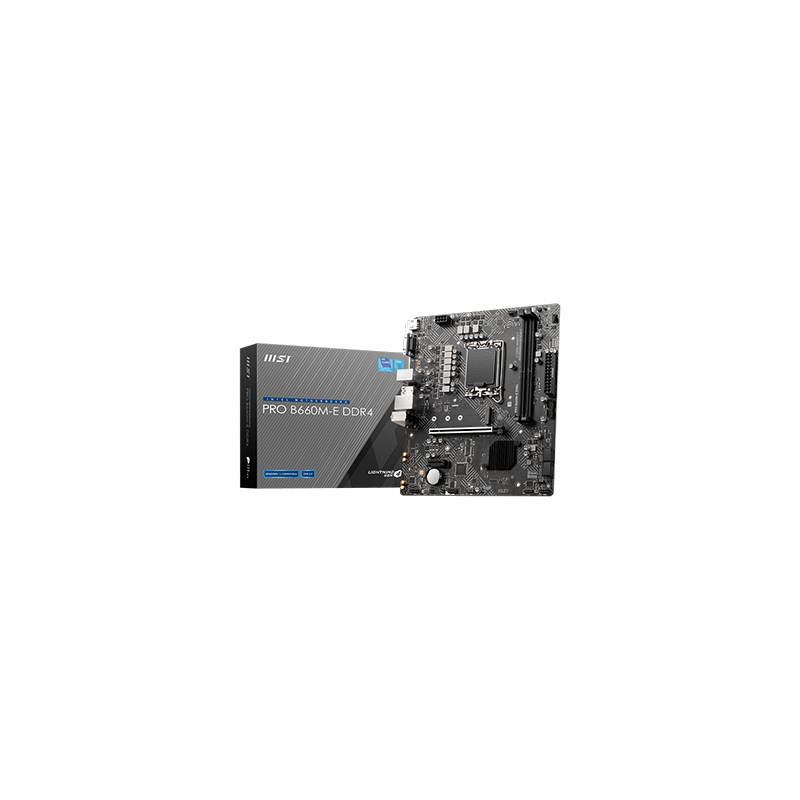

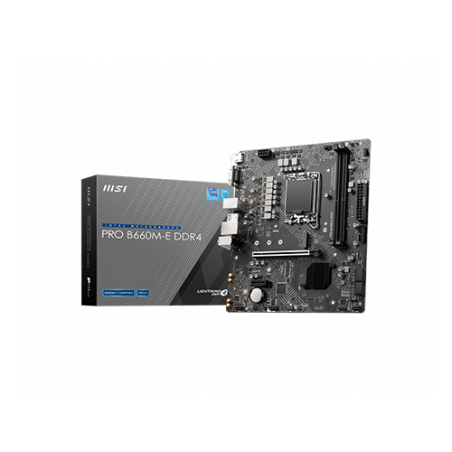

MB MSI PRO B660M-E D4

PROCESSOR
Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1
Processor socket LGA1700

CHIPSET
Intel® B660 Chipset

MEMORY
2x DDR4 memory slots, support up to 64GB 1
Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 4600+ MHz
1DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

EXPANSION SLOT
1x PCIe x16 slot (From CPU)
Supports up to PCIe 4.0 x16
1x PCIe x1 slot (From B660 chipset)
Supports PCIe 3.0 x1

ONBOARD GRAPHICS
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2
1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2
Available only on processors featuring integrated graphicsGraphics specifications may vary depending on the CPU installed.

SATA PORTS
4x SATA 6Gb/s ports (From B660chipset) 1
SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
